What to do with a broken tang

Discussion in 'Shop Talk' started by chefcomesback, Jun 17, 2014.

  1. chefcomesback

    chefcomesback Founding Member

    I have been little over ambitious with one of project my knives and after quench while trying to straighten the tang I snapped it from the blade. I have annealed to blade and the broken tang with the hope of salvaging maybe at least the blade.
    Can I weld them together and heat treat? Or is my only option to make it a smaller knife ?

  2. Is it a full or hidden tang, and how much of the tang is left? A pic would be helpful.

  3. chefcomesback

    chefcomesback Founding Member

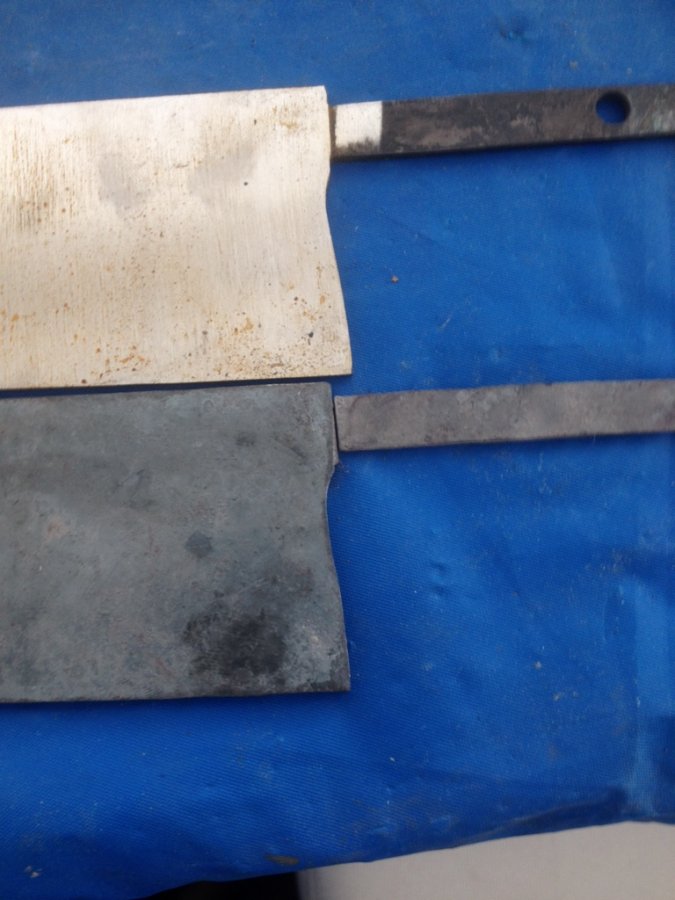

    Hidden tang , snapped right from where it connects to the blade

  4. PierreRodrigue

    PierreRodrigue Tactical Walrus Founding Member Contributor

    Looks like you created a stress riser, by not allowing a radius where the tang transitions to the shoulders. It isnt in a critical area, so grind a little bevel on the snapped piece, align and mig/stick weld. Clean it up and HT. You may be left with a cosmetic line at the weld, but if you push the heel/machi forward, you can hide it in the handle. It wont harden, but should hold.

  5. I did not understand a single word of the above. Good luck mert

  6. chefcomesback

    chefcomesback Founding Member

    Translation I have tried run before crawl , effed up :) Rami

    Thank you for suggestion Pierre , unfortunately after some inspection I found hairline cracks at the tip of the blade, so this batch is going into the scrap bin:(

  7. Pierre is right on all counts. bummer about the cracks.

  8. Bill Burke

    Bill Burke Founding Member

    Mert you can weld like Pierre said how ever you are going to need to thermal cycle the welded area I would do it at least three times. If you don't do this the welded zone will be more prone to breakage than it was before. Also don't cut the machi for the tang/ handle to such a sharp angle. I don't do mine until after the blade is hardened. Heat the weld and tang to a black heat just going into dark red after you harden temper the blade. This will make it softer and less likely to break again. Then just make a smaller blade from it to get rid of the crack at the tip.
    A Santorum is just a gyoto with the tip broken off after all

  9. chefcomesback

    chefcomesback Founding Member

    Thank you for your explanation Bill, I have learnt not the leave the tang area like that hard way :) I am going to experiment welding a tang on one of my "shortened " blades to see how it comes out

  10. Bill Burke

    Bill Burke Founding Member

    Good luck mate. if ya need anything else don't be afraid to ask.

  11. zwiefel

    zwiefel Rest in peace brother

    I had been wondering what a Santorum is for some years. ;)

    Autoincorrect, I assume.....

  12. Lefty

    Lefty Founding Member

    Wow. Pierre and Bill giving advice. How awesome was that?

  13. Yep that is awesome.

  14. chefcomesback

    chefcomesback Founding Member

    It is awesome :)

  15. cheflarge

    cheflarge Founding Member

    Pretty darn cool, brother Mert! :)

  16. CrisAnderson27

    CrisAnderson27 Professional Craftsman

    That's because everyone loves Mert!!

    :D

  17. chefcomesback

    chefcomesback Founding Member

    I am not sure about that :)!but can tell you this forum has been a great help for me and i truly appreciate Jim hosting this forum and the vendors and members sharing their knowledge . Thank you again

  18. chefcomesback

    chefcomesback Founding Member

    Thank you all again for your help, when life gives you broken tangs, you make santokus I guess!!
    Here is a preview
    It is 175mm on the edge and will get a Hawaiian mango and claro walnut handle

  19. WarrenB

    WarrenB Contributor

    Well that looks like a great save! from broken tang to sweet looking santoku, nice!
    What actually is the difference between a santoku and small gyuto, is it just a profile thing?

  20. chefcomesback

    chefcomesback Founding Member

    Thank you , the reason I called this one santoku is the tip is quite low and it's between santoku and a short but tall gyuto
