Making Wootz

Discussion in 'Caublestone Cutlery' started by Daniel Cauble, Nov 28, 2018.

  1. Daniel Cauble

    Daniel Cauble Professional Craftsman

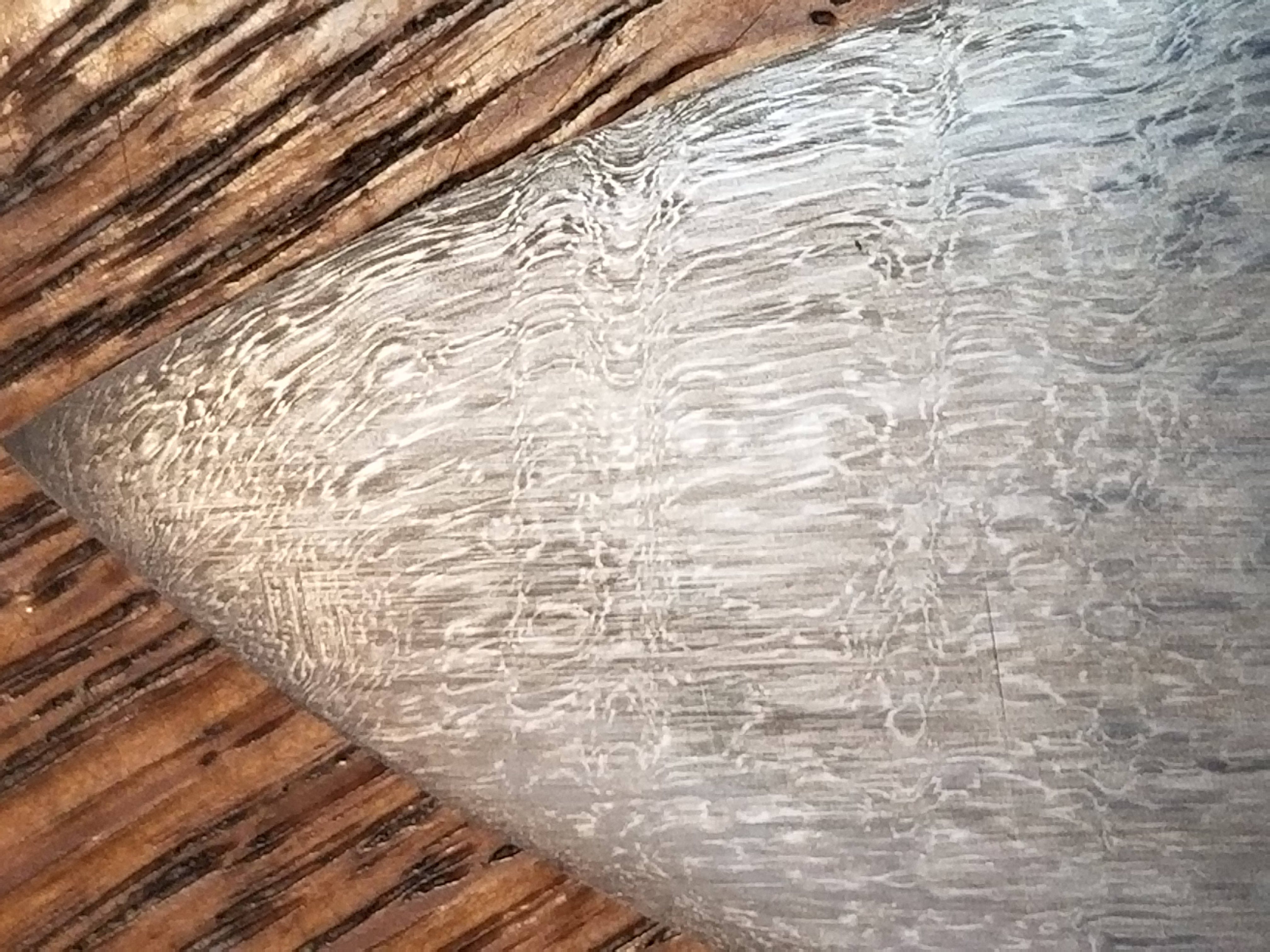

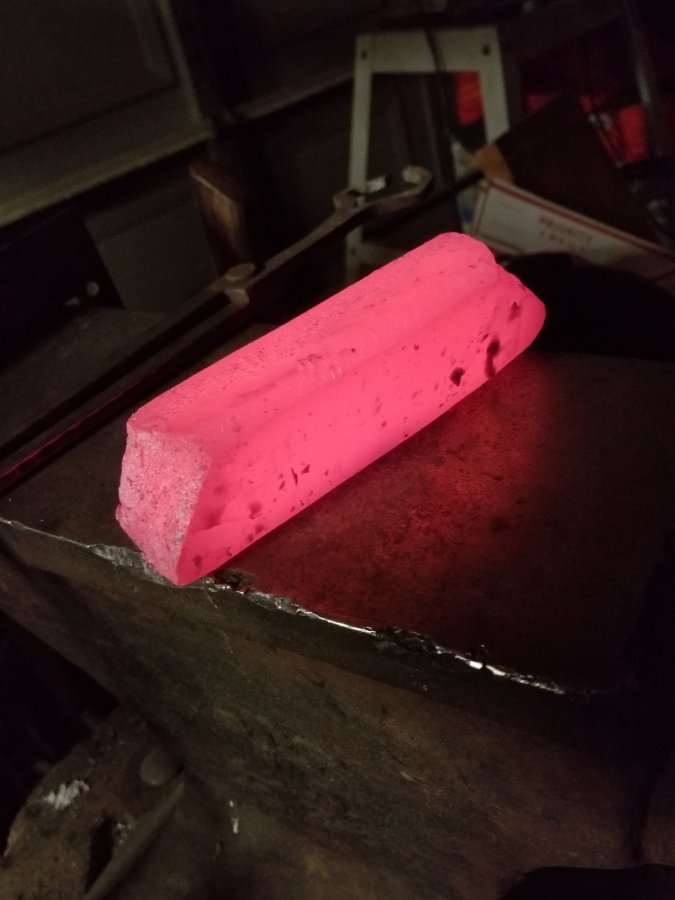

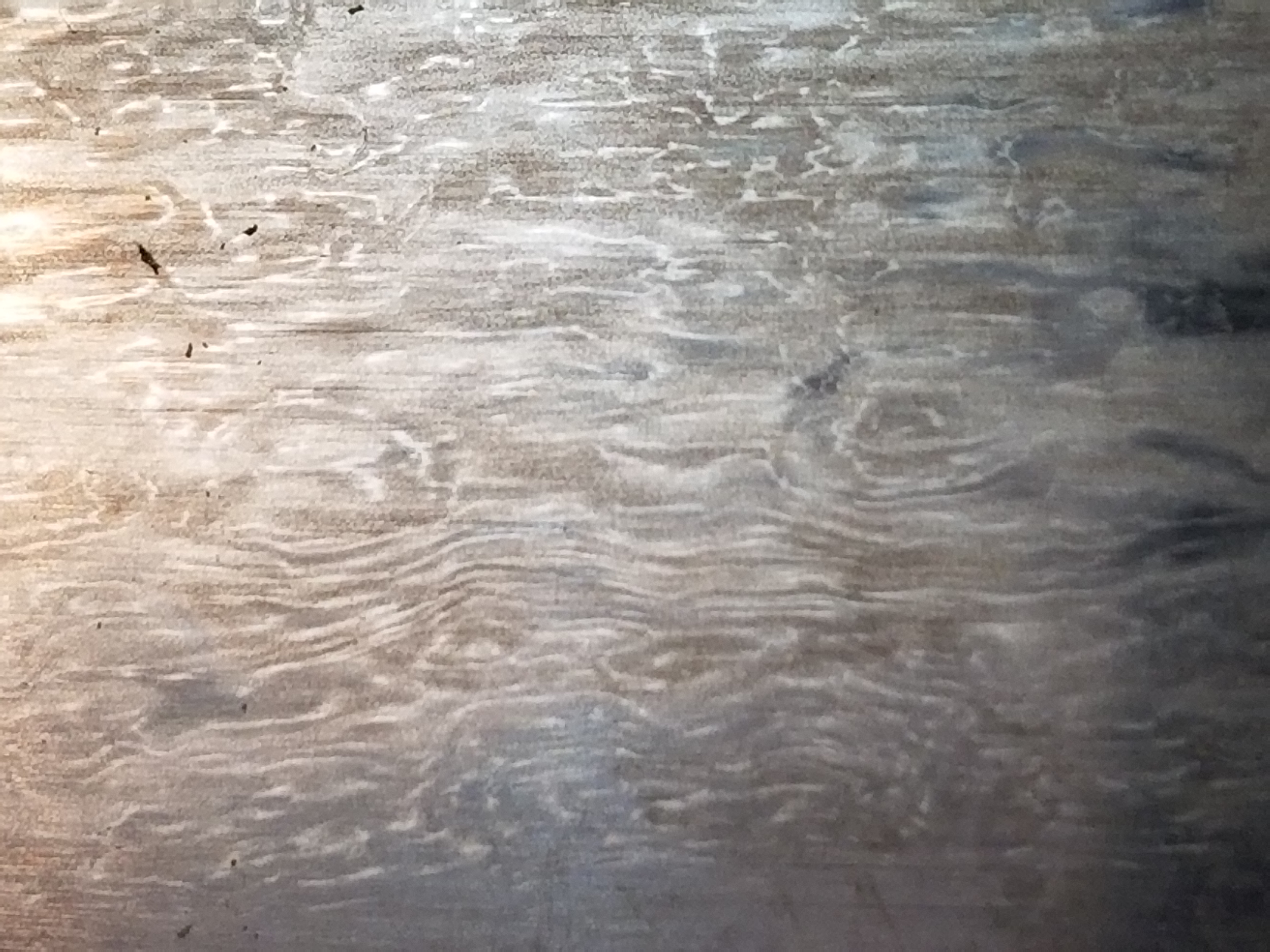

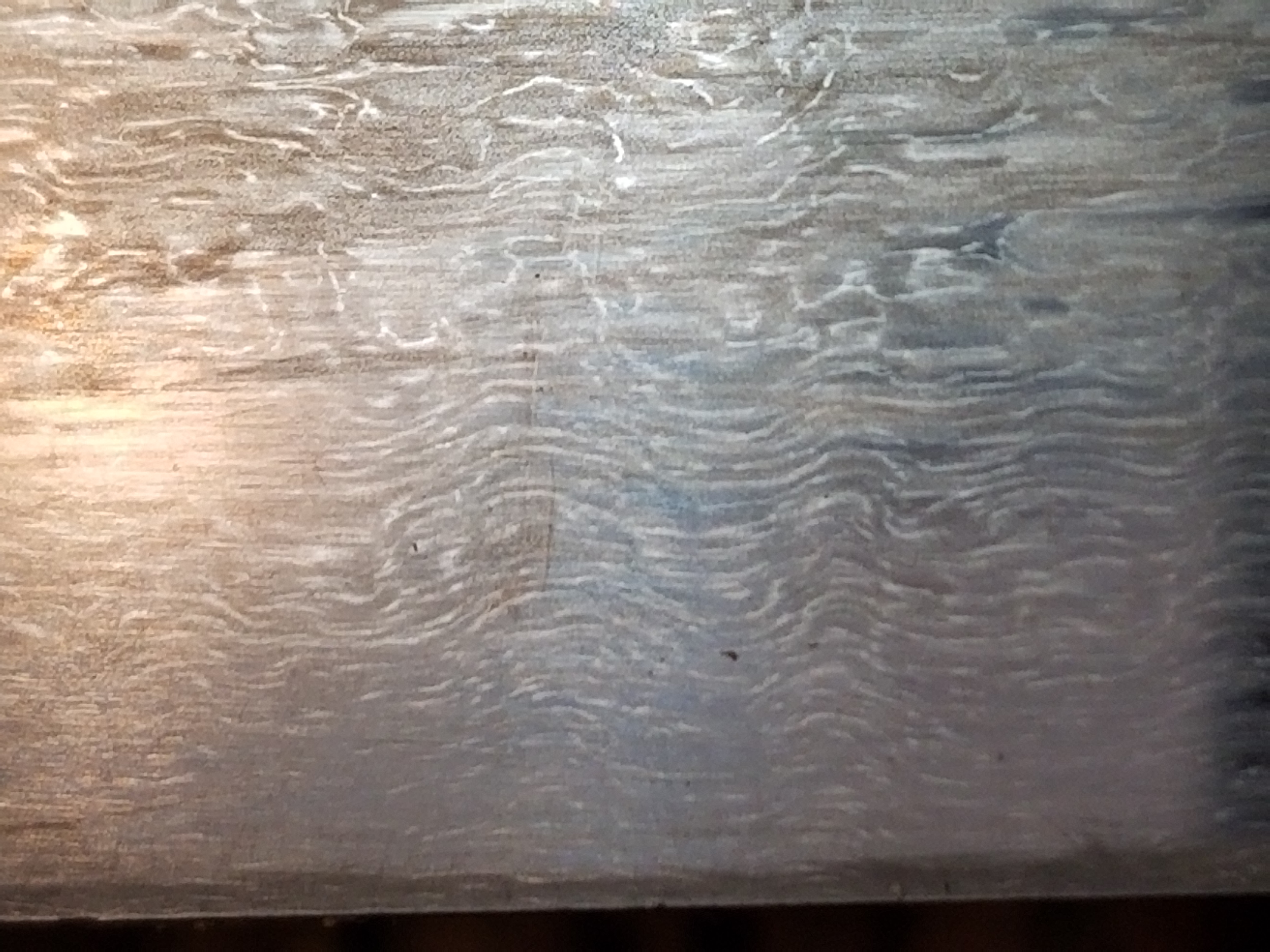

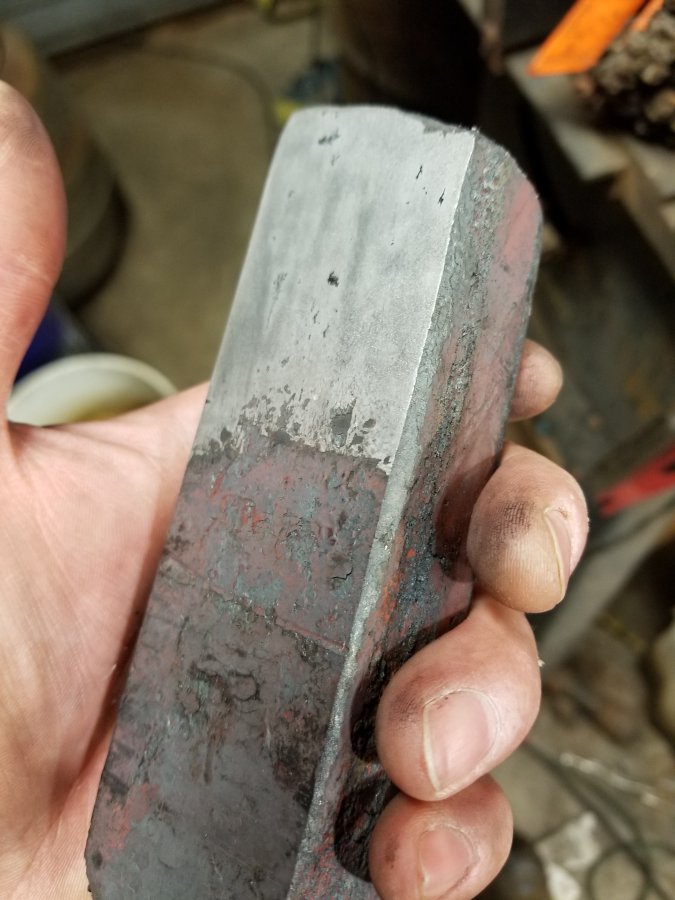

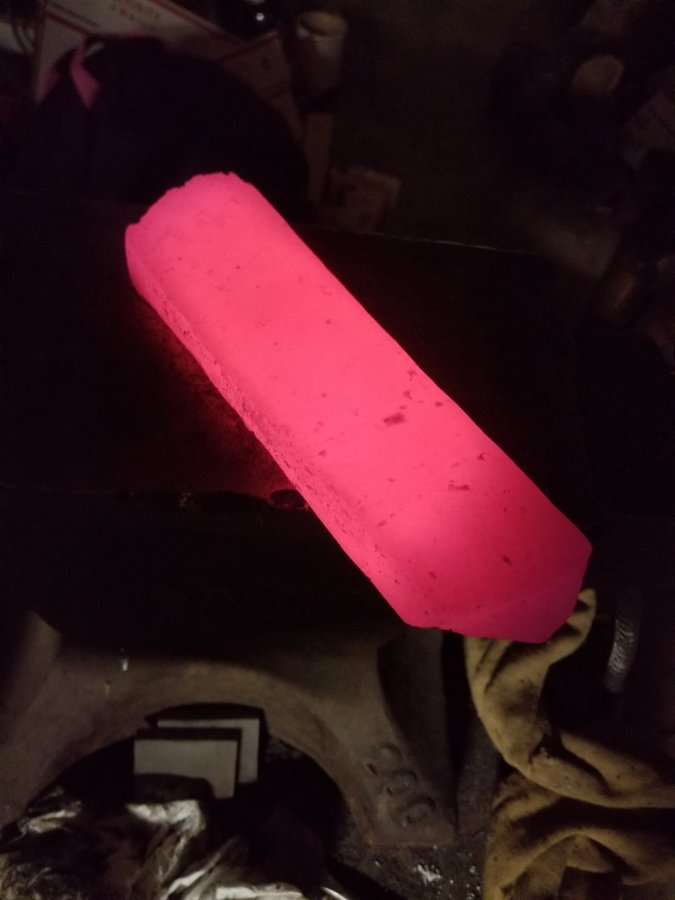

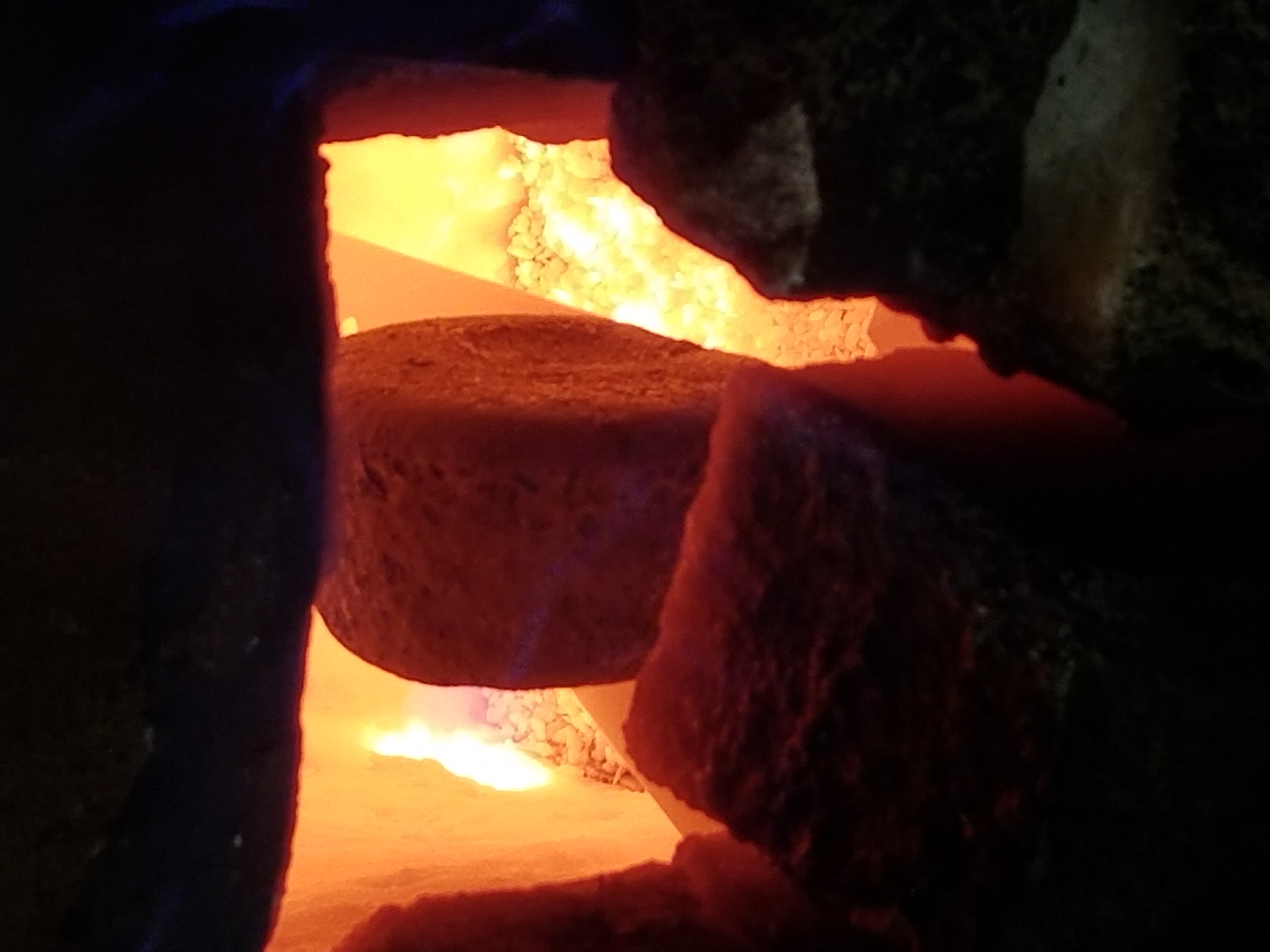

    I have been a busy bee. Unfortunately metal research and practice takes time away from knife making. It serves the act of in the end, but theres usually a long time of figuring things out when developing skills with steel. In my case, steel making. My latest crucible steel ingot made from my orishigane melt material, forged correctly to induce watering pattern of cementite.

    Samples of this ingot, and various steels i make are currently being tested for composition, and viewed under a SEM (scanning electron microscope), to be scrutinized bu engineers to prove or disprove the hypothesis of a few students at a lab.

    My own findings are that the steel is at least 1
    6% C.

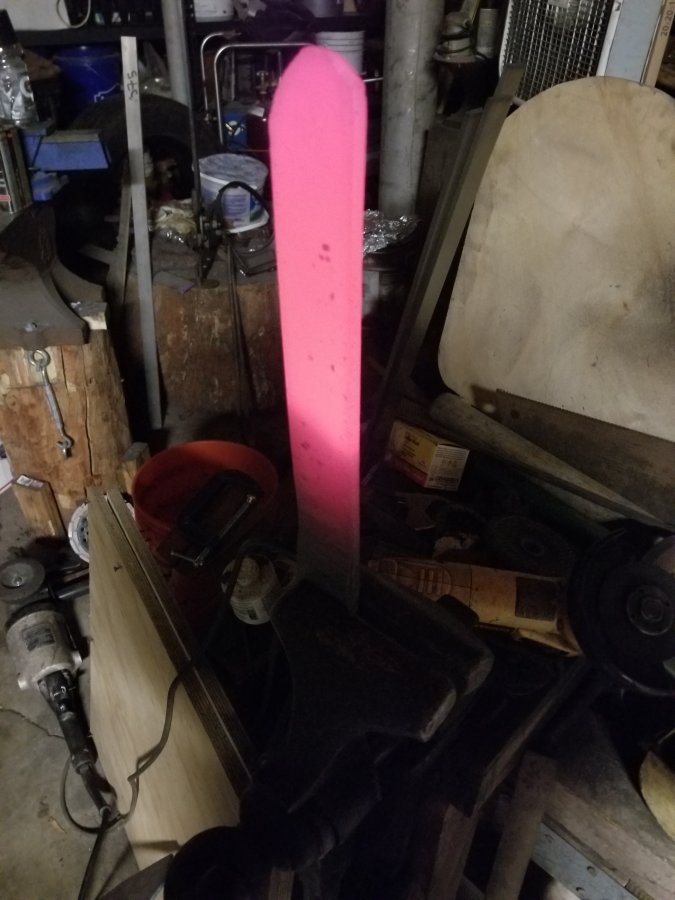

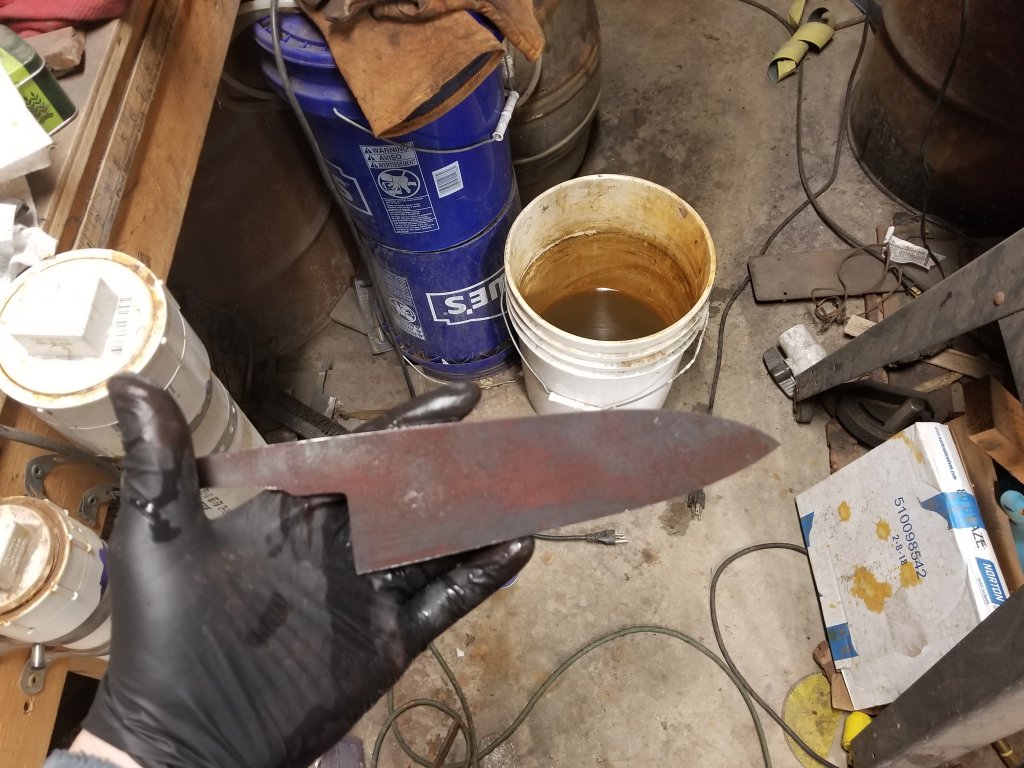

    Also, keep in mind that from start of forging to knife blade took around 40 man hours at heat, with precise control of temperatures at all times, with precise blows from the power hammer. Any deviation from small temp. Windows or strength of forging can result in broken and cracked steel, or no pattern at all.






    Attached Files:

  2. Daniel Cauble

    Daniel Cauble Professional Craftsman

    [​IMG]
    [​IMG]
    [​IMG]


    Attached Files:

  3. Jim

    Jim Old Curmudgeon Founding Member

    That is some love in the forge!
    40 hrs at heat seems so long... but the proof is in the hand.

  4. Daniel Cauble

    Daniel Cauble Professional Craftsman

    For any other material this is true. For crucible steel, it is simply part of the process. Cant really go any faster, lol.

  5. MattS

    MattS Founding Member

    Epic. Thank you for taking the time to post.

  6. Toothpick

    Toothpick #2 since day #1 Founding Member
