Haven't done a car speaker install for years....

So I decided to upgrade the kit in my van, I did a few installs in my late teens through to my late 20's. You know the stuff, amps, speakers, subs, head units

No idea if this stuff interests any of you but here it is anyway

I went for a more discreet install this time, keeping sound quality high on the list.

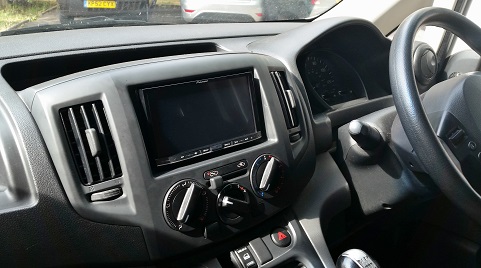

First I removed the head unit and replaced it with a Pioneer Avic-F70DAB unit, nice bit of kit, Sat Nav, Android Auto, Apple CarPlay etc etc.
The bottom tilts out when you switch it on so it matches the angle of the dash better than in the picture.

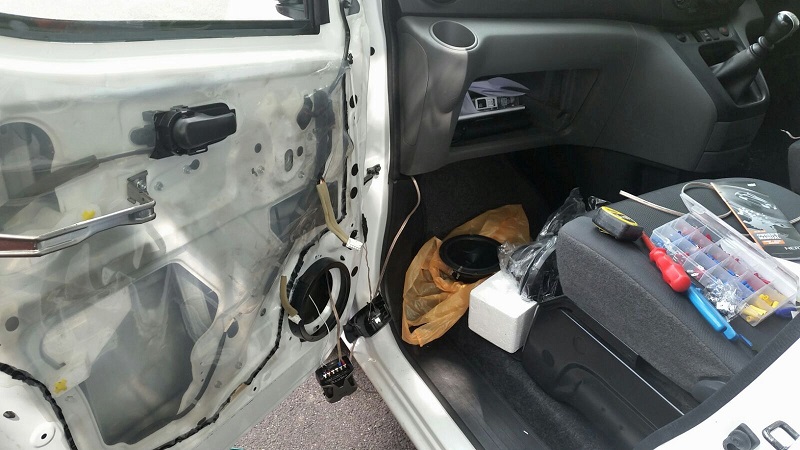

Next I removed the door speakers, just single 2 way speakers in each door, not a great sound!

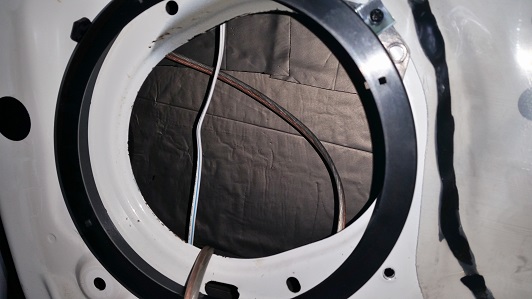

Added some sound deadening in each door

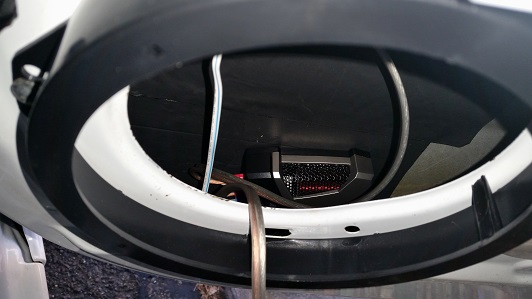

Then fitted the speaker mounting adapters and wired in the crossover units that came with the speakers.

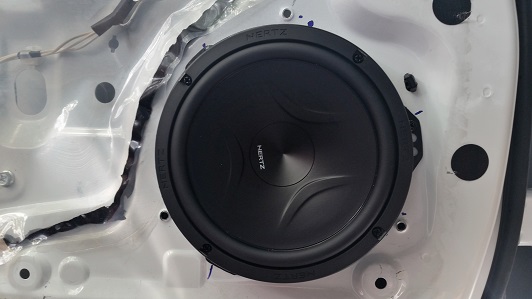

Then fitted the main 6.5" speakers, I went for a set of Hertz Energy ESK 165.5 components.
Had to mount them with the logo sideways to stop the connectors on the back fouling on the door, they wont be visible so no issue there

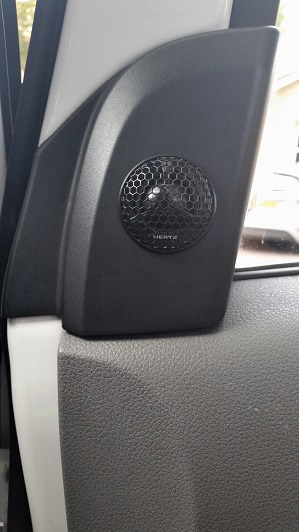

Then drilled a hole in each internal mirror cover for the tweeters

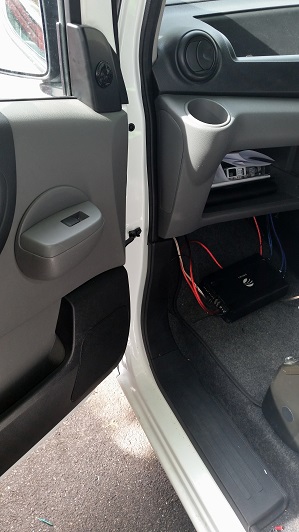

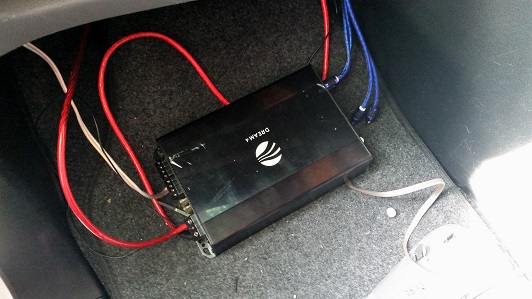

Next up I wired in the Rainbow 4 channel amp and tested everything before fixing it in place up under the dash out of sight. Nice compact amp, but great sound and decent power, 90w rms per channel for the door speakers and 250w rms bridged for the subwoofer that is going in soon.


Refitted the door panels after testing it all.


Just waiting for the 10" Hertz shallow mount sub to arrive so I can build a custom box for it under the passenger seat
Already sounding great without the sub so should be really really good when I get it fitted:cool1



Was thinking about doing this to my car as well...although I have never done it before....



Come on over and do my car next!



The difficulty level depends on the car and what you are actually swapping/adding.
Just swapping speakers can be fairly easy, but don't always sound any better running off a head unit, I always have an amp running the speakers so I get the best out of them, but then it gets a little more tricky installing an amp with the wiring from the battery etc.
Plenty of Youtube videos that show how to take door panels etc of specific cars, well worth doing some research before you get any tools out!:cool1

I am just about comfortable working on my own wagon!



Looks like Amazon have lost my subwoofer it shows as delivered but nothing here, guess the contracted courier fancied a new sub in his van!!
Refund already processed but will be another few days before I get another one delivered grrrrrrrr.....
