Fishing reel repair

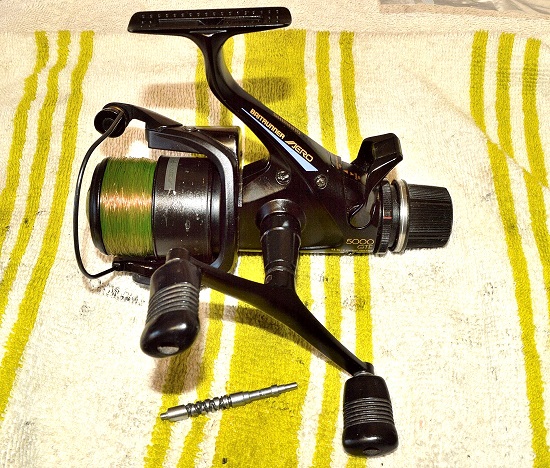

A friend asked me to have a look at a fishing reel that was wasn't working properly, handle turned but the spool was stuck at the bottom.
Never done anything like this before so decided to take some pics to help identify where the bits went if a spring or something pinged across the room!!

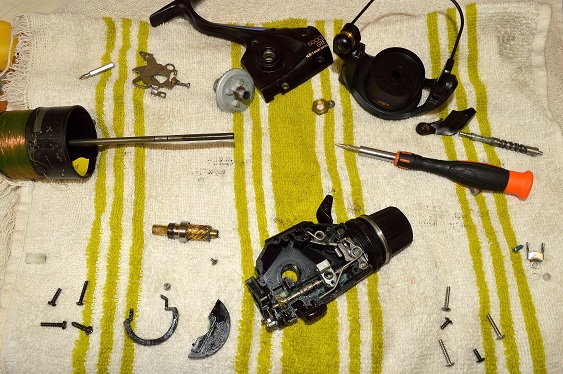

So I stripped it down and found a worn worm shaft, a call to Shimano and a few £'s later I was ready to fit the part.

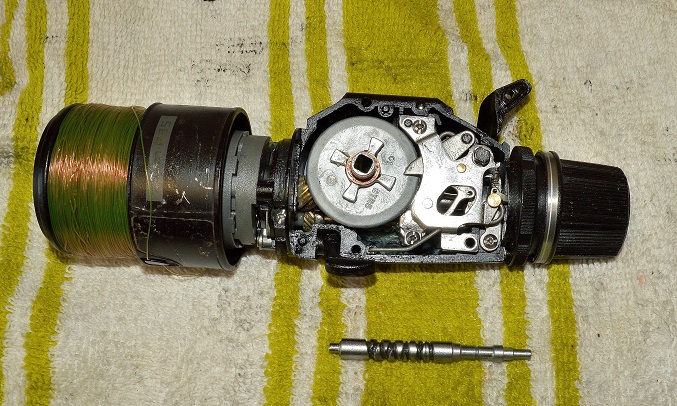

I found I had to strip a lot of it down to get to the worm shaft. Lots of screws and parts so I kept them in their own little groups so nothing got mixed up.


Managed to fit the part ok and clean some grit out of the gears, greased it all up and it went back together fine, phew!!


All working fine and running as good as new!!
